Product Details:
|
| Maximum Voltage: | 1000 V | Maximum Current Output: | 32 A |
|---|---|---|---|
| Dimension (WxHxD): | 381×380×110mm (36P) | Input: | 6 String |
| Output: | 2 String | Degree Of Protection: | IP65 |
| High Light: | PROJOY dc string combiner box,32A string combiner box solar,DC 1000V PV string box |
||

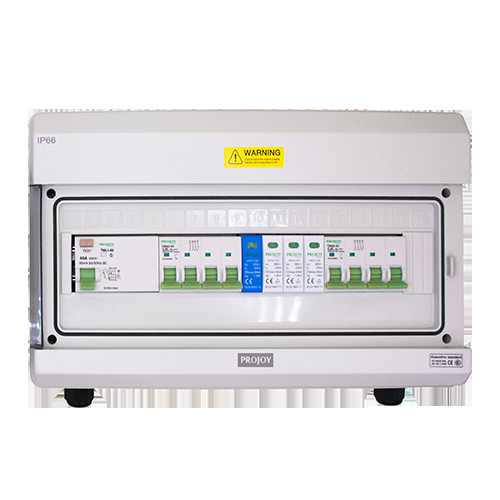

Solar DC String Box DC 1000V / 32A, 6 In 2 Out
Projoy DC Strings / Combiner Boxes For C&I Rooftop PV Plants (≥ 6 strings)
|
General Data
|
DC Surge Arrester
|
||
|
Model No.
|
PEJB-6-2
|
Max Operation Voltage(Ucpv)
|
1000V
|
|
Input
|
2 String
|
Standard Compliance with
|
EN50539
|
|
Output
|
1 String
|
Maximum Discharge Current
|
40KA
|
|
Maximum Voltage
|
1000V
|
Type
|
2
|
|
Max DC Short Circuit Current Per Input
|
15A(changeable)
|
Certification
|
TUV, CE, CB
|
|
Maximum Current Output
|
32A
|
||
|
Enclosure
|
DC fuse holder
|
||
|
Material Type
|
Polycarbonate/ABS
|
Rated Working Voltage
|
1000V
|
|
Degree of Protection
|
IP65
|
Rated Working Current
|
15A~32A
|
|
Degree of Resistance to lmpacts
|
IK10
|
Fuse Link
|
10×38mm
|
|
Dimension (WxHxD)
|
381×230×110mm (12P)
|
Certification
|
CB, CE
|
|
Cable Input Entry
|
Cable Gland ￠4-8mm or MC4
|
||
|
Cable Output Entry
|
Cable Gland ￠4-8mm or MC4
|
||
|
DC Switch Disconnector
|
Environment
|
||
|
Rated Insulation Voltage(Ui)
|
1000V
|
Operaling Temperature
|
-20℃~+60℃
|
|
Rated Current(le)
|
32A
|
Humidity
|
99%
|
|
Category
|
DC21B/PV1
|
Altitude
|
2000M
|
|
Standard Compliance with
|
IEC60947-3
|
Installation
|
Wall Mounting
|
|
Certification
|
UL, TUV, SAA, CE, CB
|
||
