Product Details:
|
| Maximum Voltage: | 1000 V | Maximum Current Output: | 32 A |
|---|---|---|---|
| Dimension (WxHxD): | 381×380×110mm (36P) | Input: | 1 String |
| Output: | 1 String | Degree Of Protection: | IP65 |
| Standard Compliance With: | EN50539 Type 2 | Maximun Discharge Current: | 40kA |
| High Light: | TUV DC AC distribution box,230V AC distribution box,32A solar ac distribution box |
||

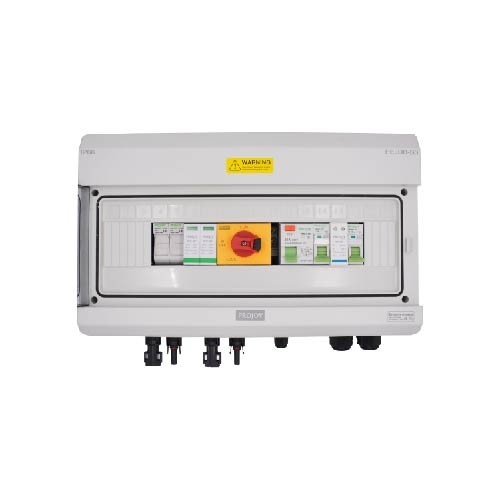

Solar DC&AC Distribution Box AC 230V / 16 & 32A
Projoy DC&AC Distribution Boxes For Residential Rooftop PV Plants (≤ 4 strings, ≤ 30kW)
|
General Data
|
DC Surge Arrester
|
||
|
DC
|
AC | ||
|
Model No.
|
PEJDB1-1/S3
|
Nominal Voltage
|
230 VAC
|
|
Input
|
1 string
|
Nominal Current
|
16 A
|
|
Output
|
1 string
|
Nominal Frequency
|
|
|
Maximum Voltage
|
1000V
|
AC MCB
|
|
|
Maximum Current Output
|
32A
|
Poles
|
1P+N
|
|
DC Surge Arrester
|
Nominal Current
|
16 A
|
|
|
Max Operation Volatage (Ucpv)
|
1000V
|
Nominal Voltage |
230 VAC
|
|
Standard Compliance With
|
EN50539 Type 2
|
Breaking Capacity
|
4.5kA
|
|
Maximun Discharge Current
|
40kA
|
Certification
|
TUV, SAA, CE, CB
|
|
Certification
|
CE |
AC SPD
|
|
|
DC Fuse Holder
|
Nominal Voltage
|
275 VAC
|
|
|
Rated Working Voltage
|
1000V
|
Max. Discharge Current
|
40 kA
|
|
Fuse Link
|
10*38mm 15-32A
|
Poles
|
1P
|
|
Certification
|
CE
|
Certification
|
CE
|
|
DC Switch Disconnector
|
AC RCCB
|
||
|
Rated Insulation Voltage (Ui)
|
1000
|
Poles
|
2P
|
|
Rated Current (Ie)
|
32 A
|
Nominal Current
|
25 A
|
|
Category
|
DC21B/PV1
|
Nominal Voltage
|
230 VAC
|
|
Standard Compliance With
|
IEC 60947-3
|
Type
|
AC(A Optional)
|
|
Certification
|
TUV, SAA, CE
|
Residual current
|
30mA(100mA/300mA Optional)
|
|
Enclosure
|
Certification
|
CE | |
|
Material Type
|
PC+ABS
|
Environment
|
|
|
Ingress Protection Rating
|
IP65
|
Operaling Temperature
|
-20℃~+60℃
|
|
Impact Protection Rating
|
IK10
|
Humidity
|
99%
|
|
Poles
|
9P
|
Altitude
|
2000M
|
|
DC Input / Output
|
cable gland ￠4-8mm or MC4
|
Installation
|
Wall Mounting
|
|
DC Input / Output
|
cable gland ￠10-14mm
|
||
