Product Details:
|
| AC Nominal Voltage: | 400 VAC | AC Nominal Current: | 40 A |
|---|---|---|---|
| Max Operation Volatage (Ucpv): | 1000V | Standard Compliance With: | EN50539 Type 2 |
| Maximun Discharge Current: | 40kA | Certification: | CE |
| High Light: | CB dc distribution box for solar,dc power distribution box 400VAC,SAA Solar Electric System |
||

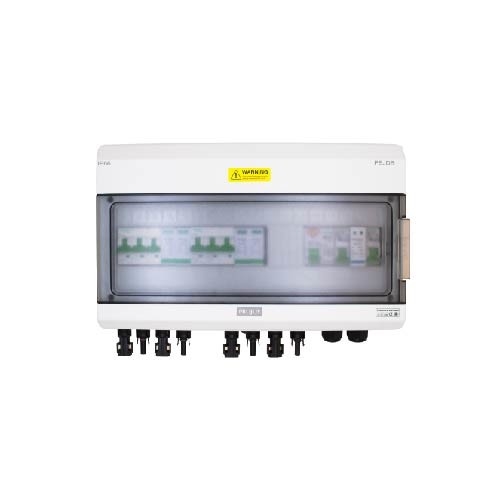

Solar DC&AC Distribution Box AC 230V / 16 & 32A
Projoy DC&AC Distribution Boxes For C&I Rooftop PV Plants (≥ 6 strings, ≥ 30kW
|
General Data
|
AC MCB
|
||
|
Model No.
|
PEJDB2-2/T20
|
Poles
|
4P
|
|
AC Nominal Voltage
|
400 VAC
|
Nominal Current
|
40 A
|
|
AC Nominal Current
|
40 A
|
Nominal Voltage
|
400 VAC
|
|
DC Surge Arrester
|
Breaking Capacity
|
6kA
|
|
|
Max Operation Volatage (Ucpv)
|
1000V
|
Certification
|
TUV, SAA, CE, CB
|
|
Standard Compliance With
|
EN50539 Type 2
|
AC SPD
|
|
|
Maximun Discharge Current
|
40kA
|
Nominal Voltage
|
440 VAC
|
|
Certification
|
CE |
Max. Discharge Current
|
40 kA
|
|
DC Fuse Holder
|
Poles
|
4P
|
|
|
Rated Working Voltage
|
1000V
|
Certification
|
CE
|
|
Fuse Link
|
10*38mm 15-32A
|
AC RCCB
|
|
|
DC Switch Disconnector
|
Poles
|
4P
|
|
|
Rated Insulation Voltage (Ui)
|
1000
|
Nominal Current
|
40 A
|
|
Rated Current (Ie)
|
32 A
|
Nominal Voltage
|
400 VAC
|
|
Category
|
DC21B/PV1
|
Type
|
AC(A Optional)
|
|
Standard Compliance With
|
IEC 60947-3
|
Residual current
|
30mA(100mA/300mA Optional)
|
|
Certification
|
TUV, SAA, CE
|
Certification
|
CE
|
|
Enclosure
|
Environment
|
||
|
Material Type
|
PC+ABS
|
Operaling Temperature
|
-20℃~+60℃
|
|
Ingress Protection Rating
|
IP65
|
Humidity
|
99%
|
|
Impact Protection Rating
|
IK10
|
Altitude
|
2000M
|
|
Poles
|
18P
|
Installation
|
Wall Mounting
|
|
DC Input / Output
|
cable gland ￠4-8mm or MC4
|
||
|
DC Input / Output
|
cable gland ￠10-14mm
|
||
