Product Details:
|
| Nominal Voltage: | 400 VAC | Nominal Current: | 20 A |
|---|---|---|---|
| Material Type: | Polycarbonate/ABS | Standard Compliance With: | EN50539 Type 2 |
| Cable Input Entry: | Cable Gland ￠4-8mm Or MC4 | Certification: | CE，CB |
| High Light: | 400V Solar AC Distribution Box,40A Solar AC Distribution Box,abs distribution box |
||

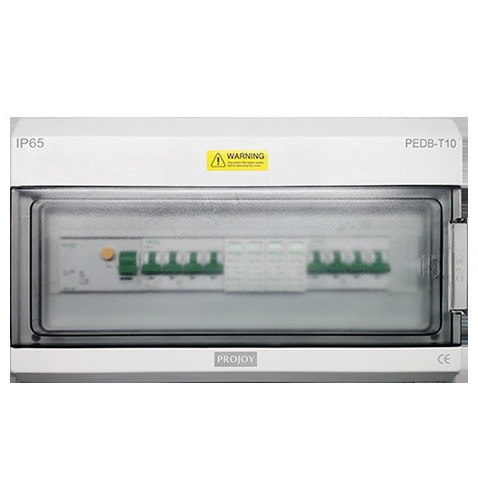

Solar AC Distribution Box AC 230V / 16 & 32A
Projoy AC distribution Boxes For Residential Rooftop PV Plants (≤ 30kW)
|
General Data
|
AC SPD
|
||
|
Model No.
|
PEDB-T10
|
Nominal Voltage
|
440 VAC
|
|
AC Nominal Voltage
|
400 VAC
|
Max. Discharge Current
|
40kA
|
|
AC Nominal Current
|
20 A
|
Poles
|
4P
|
|
Enclosure
|
Certification
|
CE, CB
|
|
|
Material Type
|
Polycarbonate/ABS
|
AC RCCB | |
|
Ingress Protection Rating
|
IP65
|
Poles |
4P
|
|
Degree of Resistance to lmpacts
|
IK10
|
Nominal Current
|
40A
|
|
Poles
|
18P
|
Nominal Voltage
|
400V
|
|
Cable Input Entry
|
Cable Gland ￠4-8mm or MC4
|
Type
|
AC(A Optional)
|
|
Cable Output Entry
|
Cable Gland ￠4-8mm or MC4
|
Nominal Voltage
|
30mA(100mA/300mA Optional)
|
|
AC MCB
|
Type
|
CE, CB
|
|
|
Poles
|
4P
|
Environment
|
|
|
Nominal Current
|
20 A
|
Operaling Temperature | -20℃~+60℃ |
|
Nominal Voltage
|
400 VAC
|
Humidity
|
99%
|
|
Breaking Capacity
|
6 kA
|
Altitude
|
2000M
|
|
Certification
|
TUV, SAA, CE, CB
|
Installation
|
Wall Mounting
|
