Product Details:
|
| Standard: | IEC60269-1/IEC60269-6 | Rated Working Voltage Ue VDC: | 1000V DC |
|---|---|---|---|
| Rated Current In A: | 32A | Breaking Capacity KA: | 20kA |
| Protection Degree: | IP20 | Wire Mm²: | 1-25mm |
| High Light: | 1000V 32A GPV Fuse,PROJOY 32A GPV Fuse |
||

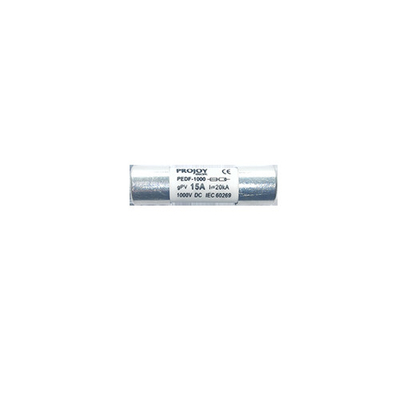

PROJOY 1000V 32A GPV Fuse
|
Model |

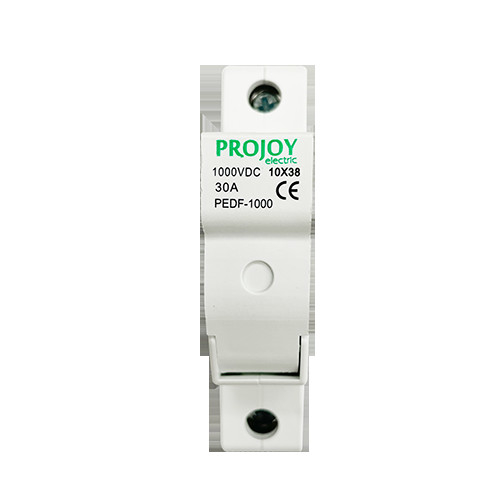

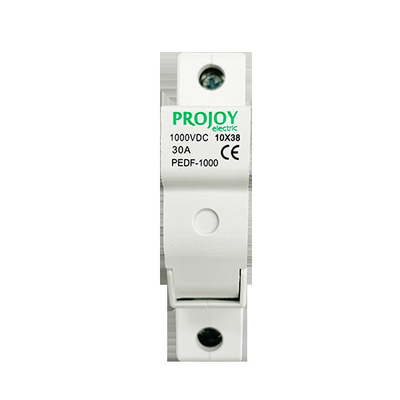

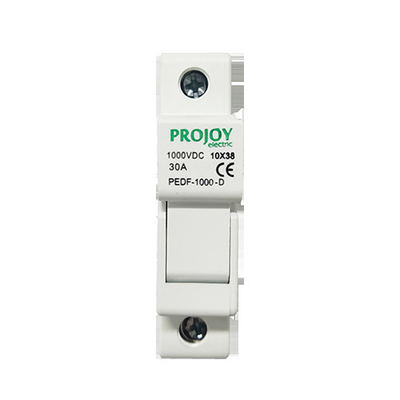

PEDF-1000,PEDF-1000-D
|
PEDF-1500,PEDF-1500-S
|
|
Poles
|
1P | |
|
Standard
|
IEC60269-1/IEC60269-6
|
IEC60269
|
|
Rated working voltage Ue VDC
|
1000V DC
|
1500V DC
|
|
Rated current In A
|
32A
|
50A
|
|
Breaking capacity kA
|
20kA
|
|
|
Protection degree
|
IP20
|
|
|
Wire mm²
|
1-25mm²
|
|
|
Ambient temperature
|
-40℃～90℃
|
-50℃～90℃
|
|
Elevation
|
≤2000m
|
|
|
Relative humidity
|
+20℃,≤90%；+30℃,≤80%；+40℃,≤70%
|
|
|
Installation environment
|
Avoid obvious shock and vibration
|
|
|
Installation class
|
III
|
Class III
|
|
Mounting channel
|
TH35-7.5/DIN35 rail
|
|
