Product Details:
|
| Standard: | PEDSC-EL 1000V / 1200v | Rated Insulation Voltage: | 1500V |
|---|---|---|---|
| Rated Current In A: | 32A | Mechanical Life: | 10000 Times |
| Number Of DC Poles: | 2 Or 4 | IP Rating Of Shafte And Mounting Nul: | IP66 |
| High Light: | DC External Isolation Switch IP66,DC External Isolation Switch 1000V |
||

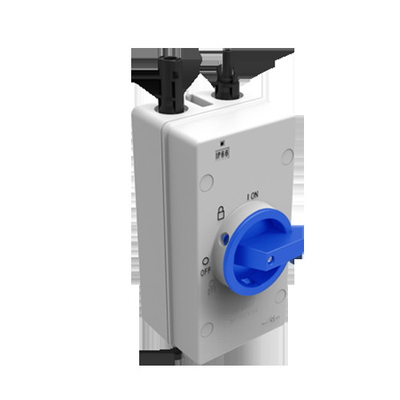

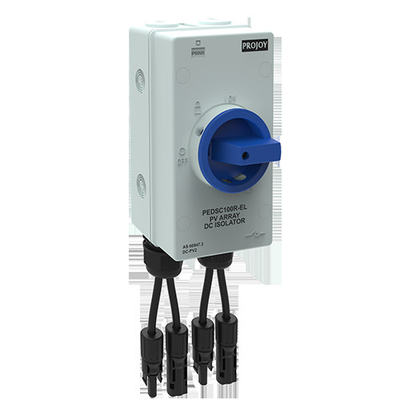

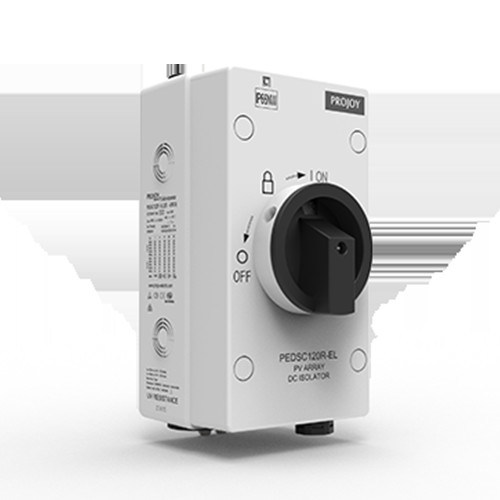

DC external isolation switch
|
Main Parameters
|
PEDSC100R/120R-EL32
|
|
|
Rated insulation voltage
|
V
|
1500 |
|
Rated thermal current
|
A | 32 |
|
Rated impulse withstand voltage
|
V |
8000
|
|
Rated short-circuit making capacity
|
A |
1000
|
|
Solid or standard
|
mm2
|
4-16
|
|
Flexible
|
mm2 |
4-10
|
|
Flexible (+ multicore cable end)
|
mm2 |
4-10
|
|
Tightening torque terminal screws M4
|
Nm
|
1.2-1.8
|
|
Tightening torque shell mounting screws ST4.2(304 stainless steel)
|
Nm
|
1.5-2.0
|
|
Tightening torque knob screws M3
|
Nm
|
0.5-0.7
|
|
Switching on or off Torque
|
Nm
|
0.9-1.3
|
|
The wiring Torque on Base
|
Nm
|
1.1-1.4
|
|
Knob positions
|
OFF at 9 hr, ON at 12 hr(Optional OFF at 12 hr, ON at 3 hr)
|
|
|
Mechanical life
|
10000
|
|
|
Number of DC poles
|
2 or 4
|
|
|
Operation temperature
|
-40 to +85
|
|
|
Storage temperature
|
-40 to +85
|
|
|
Pollution degree
|
℃
|
2
|
|
Overvoltage category
|
℃
|
Ⅲ
|
|
IP rating of shafte and mounting nul
|
IP66
|
