Product Details:
|
| Standard: | PEDS-5540-55a | Rated Impulse Withstand Voltage: | 8000V |
|---|---|---|---|
| Rated Thermal Current: | 32A | Mechanical Life: | 10000 Times |
| Number Of DC Poles: | 2 Or 4 | IP Rating Of Shafte And Mounting Nul: | IP66 |
| High Light: | DC External Isolation Switch 1500V,IP66 DC External Isolation Switch |
||

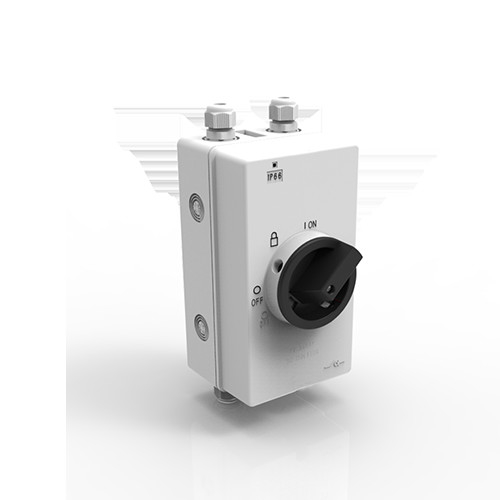

DC external isolation switch 1500V
|
Main Parameters
|
PEDS-55
|
|
|
Rated insulation voltage
|
V
|
1500 |
|
Rated thermal current
|
A |
55
|
|
Rated impulse withstand voltage
|
V |
8000
|
|
Rated short-time withstand current (1s
|
A |
780
|
|
Rated short-circuit making capacity
|
A
|
1,200
|
|
Solid or standard
|
mm²
|
4-16
|
|
Flexible
|
mm²
|
4-10
|
|
Flexible (+ multicore cable end)
|
mm²
|
4-10
|
|
Tightening torque terminal screws M4
|
Nm
|
1.2-1.6
|
|
Tightening torque panel mounting screws ST4.2(304 stainless steel)
|
Nm
|
0.8-0.9
|
|
Tightening torque single hole mounting nut M16
|
Nm
|
2.0-2.5
|
|
Tightening torque knob screws M3
|
Nm
|
0.5-0.7
|
|
Switching on or off torque
|
Nm
|
0.9-1.9
|
|
off torque
Screw torque
|
Nm
|
1.5~2.0
|
|
Knob positions
|
OFF at 12 hr,ON at 3 hr; (OFF at 9 hr,ON at 12 hr optional)
|
|
|
Mechanical life
|
10,000
|
|
|
Number of DC poles
|
2/4
|
|
|
Distance of contacts (per pole)
|
mm
|
8
|
|
Operation temperature
|
℃
|
-40 to +85
|
|
Storage temperature
|
℃
|
-40 to +85
|
|
Pollution degree
|
2
|
|
|
Overvoltage category
|
III
|
|
|
IP rating of shafte and mounting nut
|
IP66
|
